- 2 x 80kg steel machined weight stack
- Upgradable to 130kg stacks
- 2:1 Pulley Ratio
- One hand slider adjustment
- Heavy-duty rated cables
- Sealed bearing machined aluminium pulleys
- Magnetic selector pin with spring cable
- Band Peg attachments
- Single 32mm Chin-up Bar

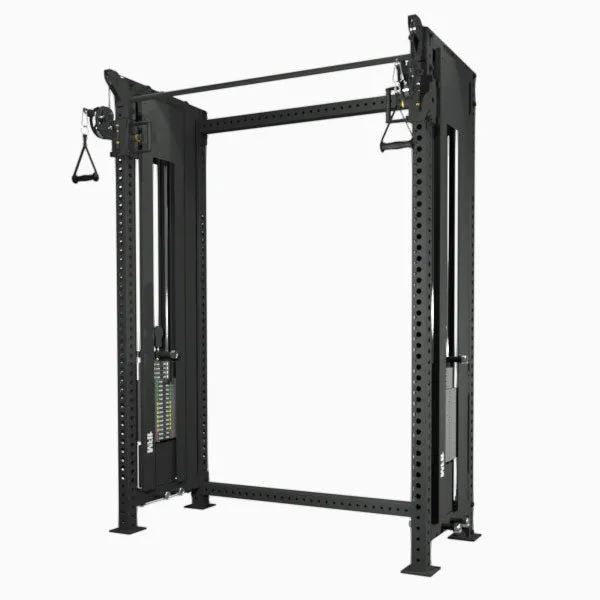

The 1RM Cable Crossover offers two 2:1 ratio 80kg or 130kg selectorised weight stacks with 2000lb rated tensile strength cables and sealed bearing machines aluminium pulleys - joined together with a wider 1.7m chin-up bar that allows for a greater range of movement. It's perfect for any environment where strength and quality are demanded.
Features include matte black textured powder coated steel frame, aircraft steel cables, and high quality machined aluminium pulley wheels. The little details also count with easy to adjust anodised aluminium pop pins, a magnetic selector pin with spring cables and band pegs for adding those incremental gains.
With the top four weight plates weighing 2.5kg, and the remaining plates weighing 5kg, it's suitable for all lifters from beginner to experienced.
Features
- 2 x 80kg steel machined weight stack
- 2:1 Pulley Ratio
- One hand slider adjustment
- Heavy-duty rated cables
- Sealed bearing machined aluminium pulleys
- Magnetic selector pin with spring cable
- Band Peg attachments
- Single 32mm Chin-up Bar
Specifications
- Assembled dimensions: 1901 (W) x 834 (D) x 2510 (H) mm
- Total Weight (80kg stack version): TBC
- Total Weight (130kg stack version): TBC
Other Considerations:
Space Required. Please note you need a minimum ceiling clearance of 2.6m for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead for barbell work and bar muscle ups.
Installation. This 1RM Ebony Cable Crossover Machine needs to be mounted to the floor. It can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each foot requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.
If you cannot bolt the unit down, it is recommended that you purchase a pair of 1RM Stubby Feet to install on the front of the unit.
