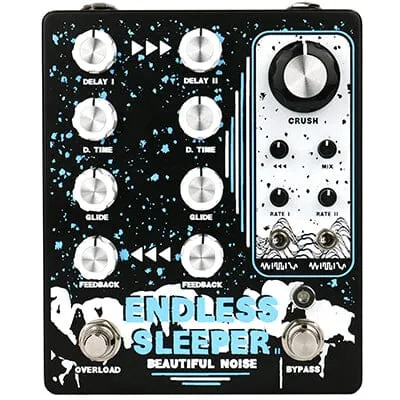

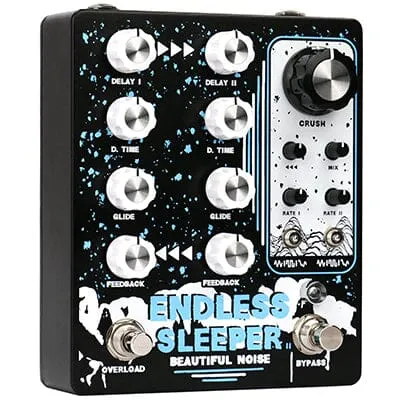

Endless Sleeper II is an analog voiced cascading dual-delay pedal with a tonne of

versatility and experimentation upgrades over its V1 predecessor.

The dry signal stays fully analog from input to output, while the wet signal passes

through two digital delay chips, each with controls for DELAY (Mix), D. TIME, GLIDE

and FEEDBACK. Each delay time ranges from 30ms to 1500ms: the longer the delay

time, the further the trails degrade into grainy shades of low fidelity.

Self-oscillation mode will occur by either raising the FEEDBACK knobs, or by engaging

the OVERLOAD foot-switch, momentarily maxing out both delay’s feedback controls for

hands-free sonic mayhem.

The GLIDE control modulates the pitch of each delay line, with individual rate

adjustments and two LFO’s that are selectable between SINE, SQUARE, and RANDOM

waveforms. This adds a rich layer of warbling textures—lush chorus, vibrato, flutter &

wow, or deep waves of pitch shifting madness.

The CRUSH control drives the delay’s output into an analog sample rate reducer, which

crushes your signal down to emulate sounds similar to 8-bit gaming consoles and

microcomputers of the 1980’s, with an added MIX control to blend from a sparkly lo-fi

bit-crushing effect, to an aggressive 8-bit fuzz.

The most experimental feature, symbolised as <<< forces the output of DELAY II back

into the input of DELAY I, causing a third delay line, adding an additional repeat to every

previous sequence of repeats, for the creation of subtle ambient-echo textures to total

synthetic dream simulation.Controls:

DELAY: Controls the balance between the dry (unaffected) signal and the delayed

signal, adjusting the wet/dry mix.

D. TIME: Sets the delay time from 30ms to 1500ms. Longer delays introduce more lo-fi

characteristics, with added noise, distortion, and other artifacts.

FEEDBACK: Adjusts the number of repeats, from a single slap-back at lower settings to

infinite repeats and chaotic oscillations at higher settings

.

GLIDE: Controls the depth of pitch modulation applied to the delayed signal.

RATE I & II: Controls the speed (rate) of the Glide LFO modulation, adjusting how

quickly the pitch modulation occurs.

WAVEFORMS: Selects the Glide modulation LFO waveform: Sine, Square, or Random.

CRUSH: Reduces the sample rate of the output signal, from a soft sparkly chime at

lower settings to full 8-bit fuzz at higher settings. (Sample rate range: 40kHz to 270Hz)

MIX: Adjusts the wet/dry mix of the CRUSH sample rate reduction effect.

<<<: Routes the output of DELAY II back into the input of DELAY I, causing a third

delay line, adding an additional repeat to every previous sequence of repeats. Both

delays need to be active for this to have an effect, and the D. TIME of both delay’s

determine how it will sound.

OVERLOAD: When engaged, it momentary maxes out both FEEDBACK controls.

BYPASS: True Bypass, effect ON/OFF.

Specifications:

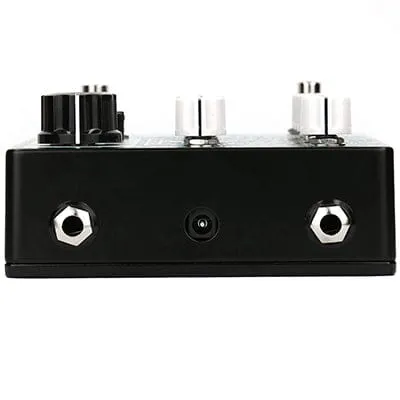

Power: 9V DC power supply, standard 2.1mm (negative tip/positive sleeve).

Current: 90mA

Dimensions: 15 × 12 × 5.8 cm
