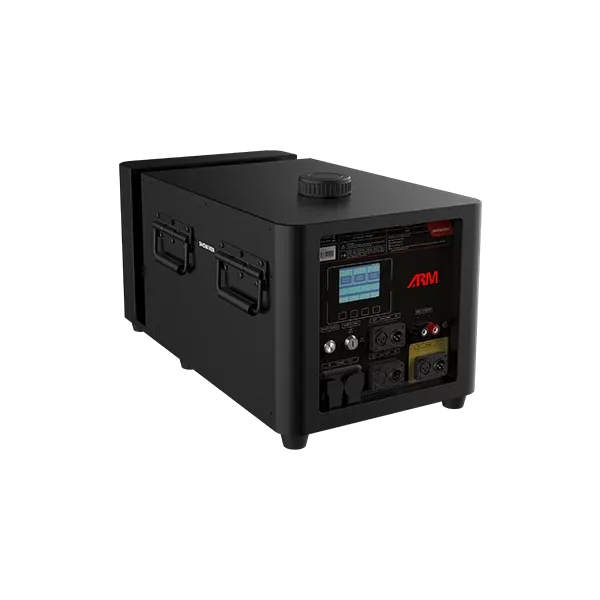

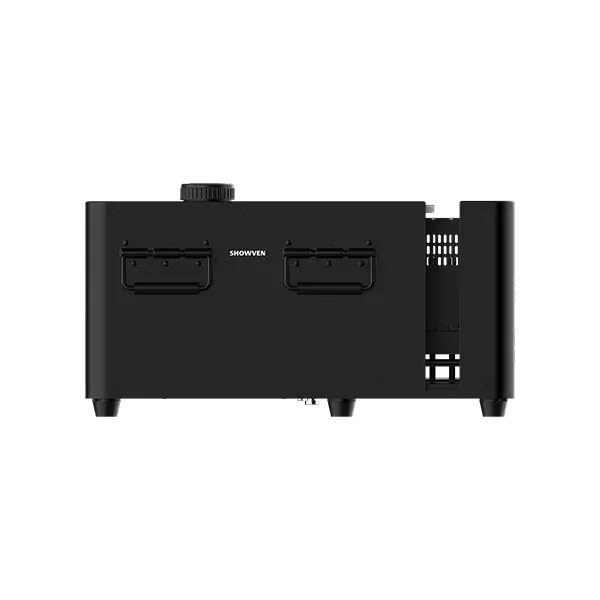

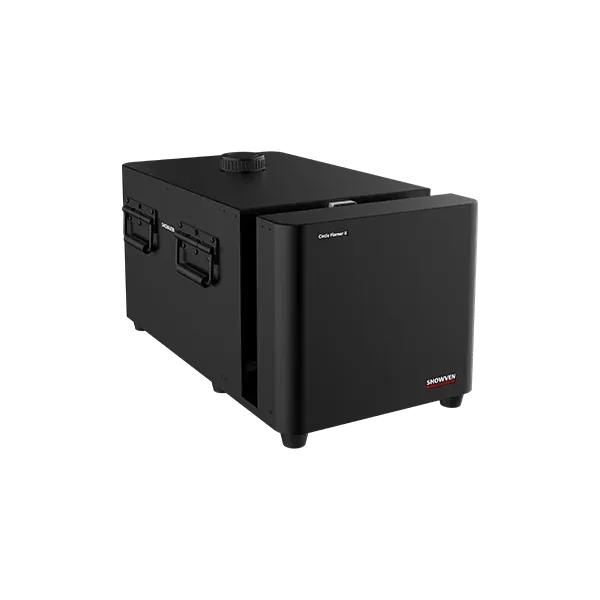

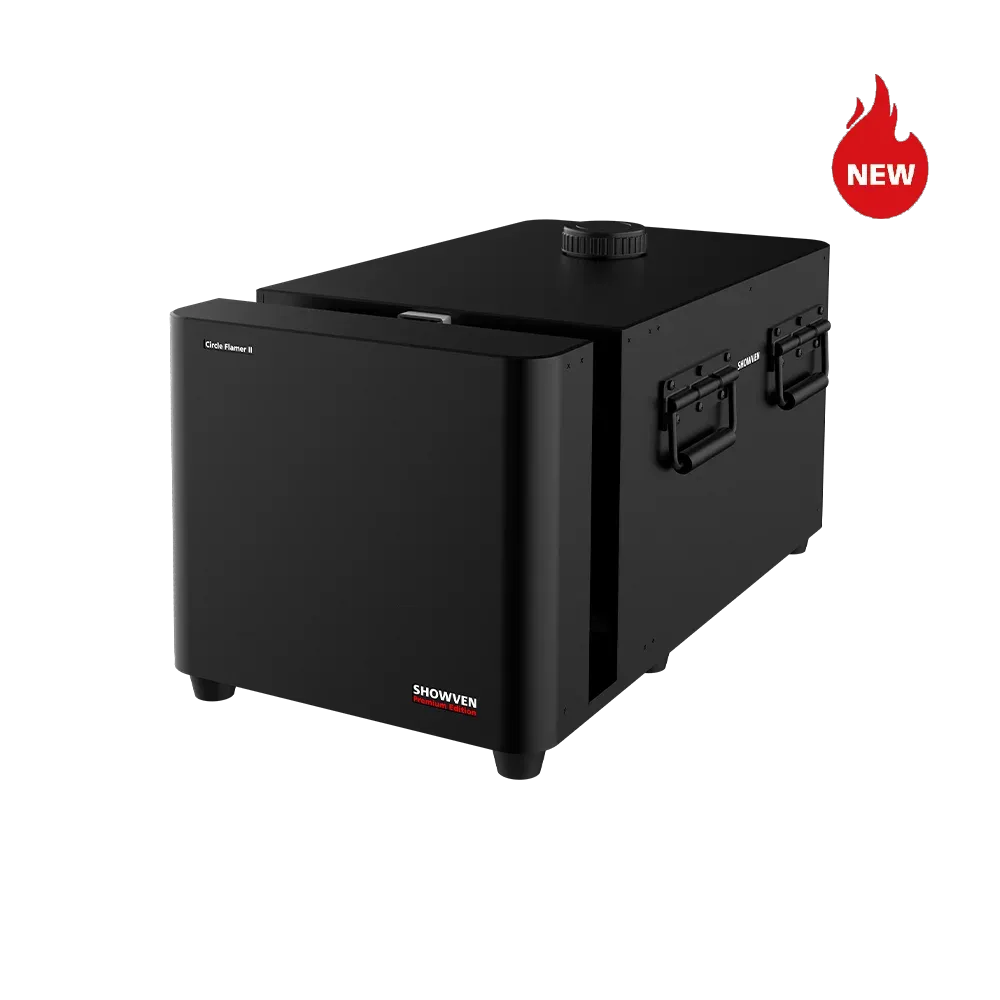

Circle Flamer II merges our second generation liquid flamer platform with the original Circle Flamer platform to produce a maximum flame height of 12m with 210° waving angles. Equipped with a dual high-pressure pump, it boasts a superior combustion rate compared to other liquid flamers in the market. The waving motor is equipped with angle block detection and a memory function, making it convenient for operators to set angle limits. It can also be powered by 18650 batteries.
Features and advantages:
- 210° waving angles
- Aliminum housing structure, premium quality design
- Powerful dual pump ensure higher combustion rate, less fuel residue
- The first waving flamer with flame monitoring function
- Multi safety configurations: cascadable power cut-off E-stop connector, ARM indicator light, safety switch etc.
- Dual valve, dual igniter
- 9L Built-in fuel tank
- Durable metal tube structure
- Built-in 18650 battery design
- Waving motor with angle block detection and memory function
Specs:
- Dimension: 610 x 330 x 330 mm
- Weight: 32kg
- Input and Power: 100-240VAC, 50/60 Hz, 550W
- Housing Material: Aluminum
- Effect Direction: 210° (±105°)
- Max. Flame Height (No Wind): Nozzle H: 10-12m
- Fuels: ISOPAR G, H, L, M; ISOPROPANOL
- Fuel Tank Capacity: 9L
- Fuel Consumption Rate:Nozzle M: 60ml/s

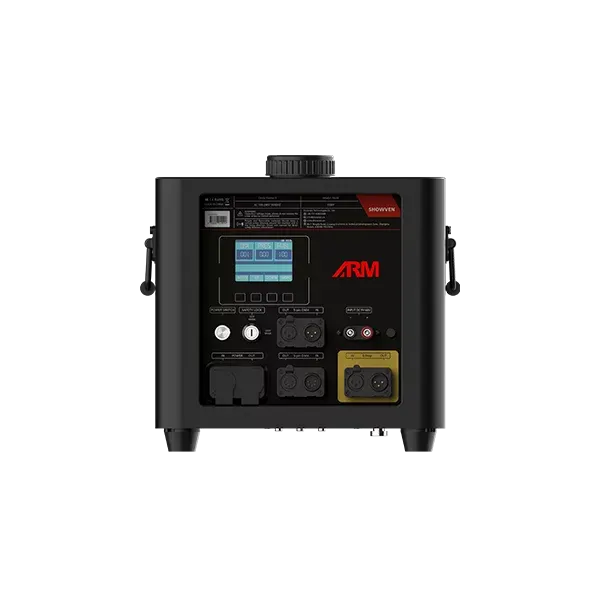

- Interface: NEUTRIK POWERCON TRUE1 IN/OUT;Waterproof 3-pin and 5-pin XLR IN/OUT
- Control: DMX, 9-60V Pyro Signal
- E-stop: Yes
- ARM Indicator Light: Yes
- Liquid Level Sensor: Yes
- Ignition: High Voltage Electron Ignition * 2
- Valve: Dual
- Pump: Dual
- Built-in Battery Design: Yes, 18650 battery
- Use in Rain: Yes
