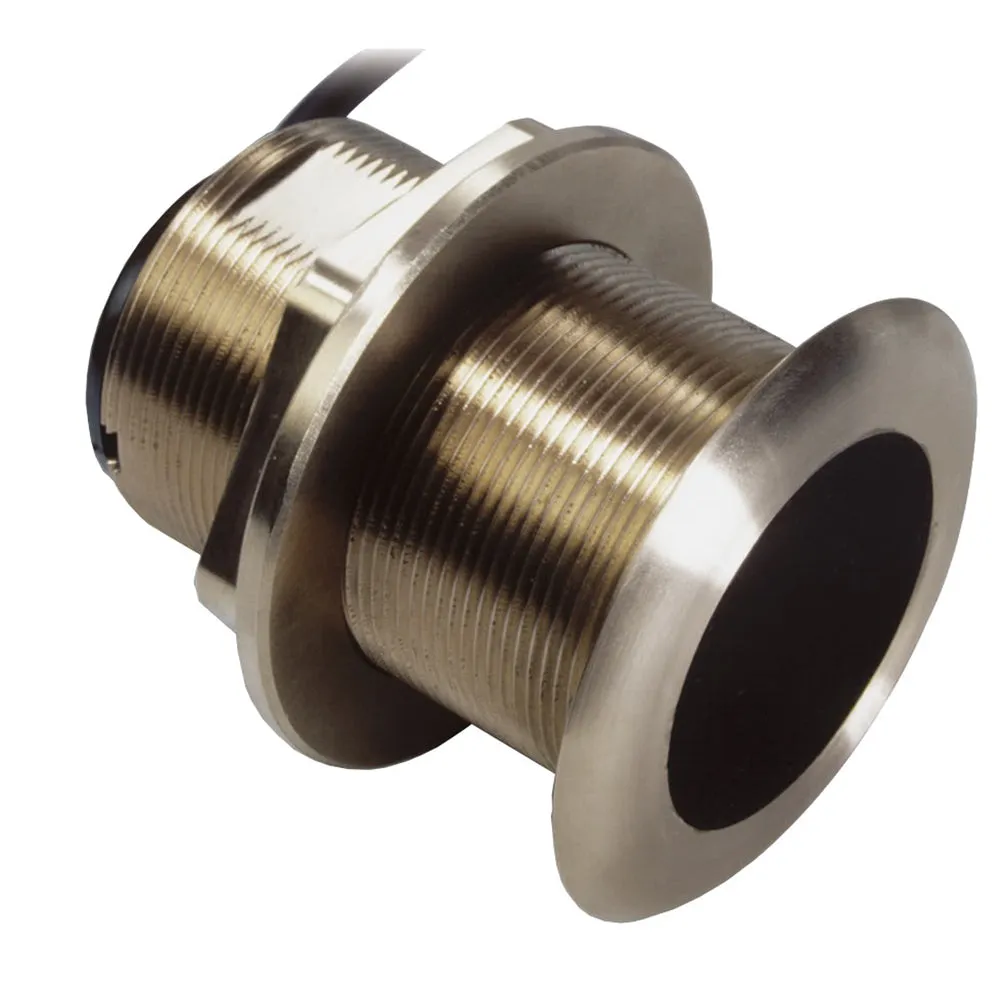

B60 Tilted Element 20° Furuno 10 pin connector
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications:
- Mounting Style: Thru-Hull
- Temperature: Yes
- Speed Included: No
- Box Dimensions: 6"H x 8"W x 9"L WT: 4.6 lbs
- UPC: 6116793079346
