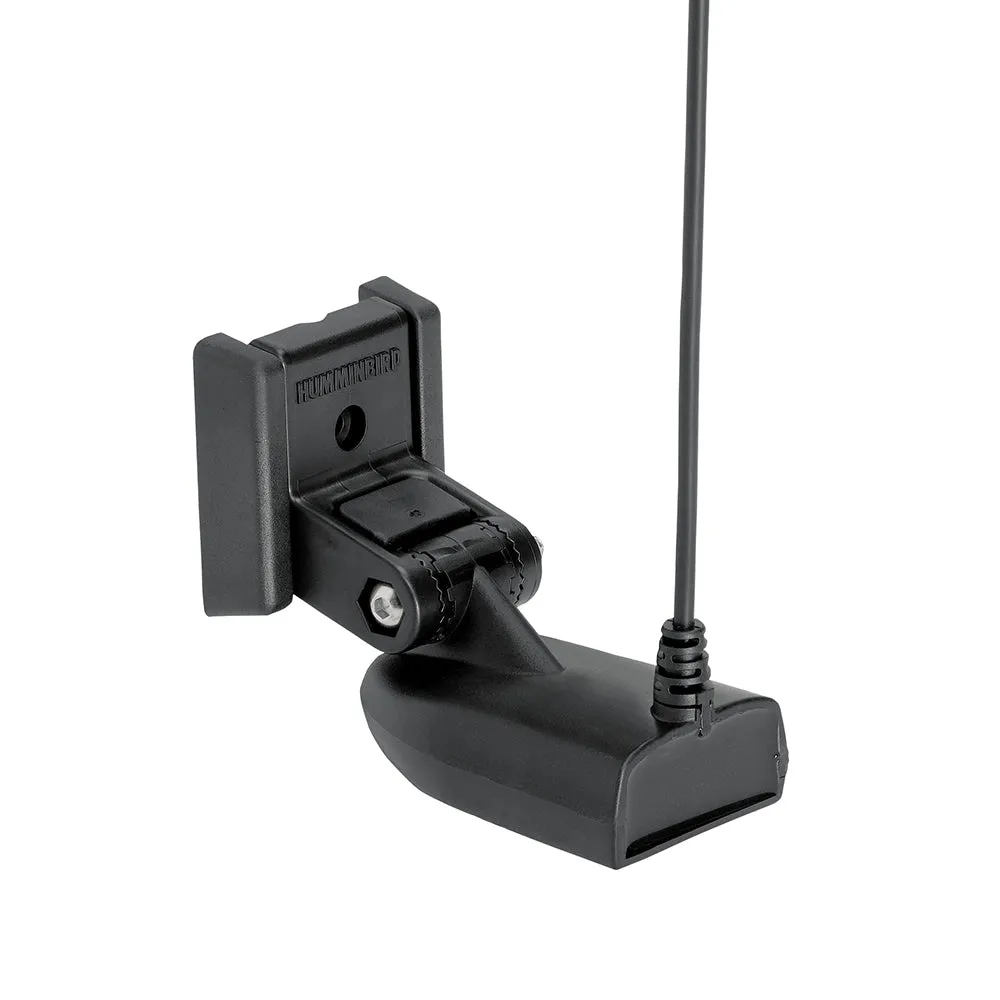

XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer with Temp f/HELIX® 7/8 MEGA SI

 Transom Mount, MEGA Down Imaging, 455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature. Compatible with: HELIX 7 CHIRP MEGA SI GPS G3/G4, HELIX 7 CHIRP MEGA SI GPS G3N/G4N.

Features:

• Compatible with: HELIX 7 CHIRP MSI GPS G3, HELIX 7 CHIRP MSI GPS G3N, HELIX 7 CHIRP MSI GPS G4, HELIX 7 CHIRP MSI GPS G4N
• Cable Length:  20 Feet
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m)
• Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Temperature: Yes
• Pins: 7
• Mounting Style: Transom
• Speed Included: No
• Imagining: Standard/Down/Side
• Chirp: High Wide
• Cable Length (Feet): 20'
• Box Dimensions: 4"H x 8"W x 9"L WT: 1.45 lbs
• UPC: 082324053498
