Fits 7/8" and 1" handlebars

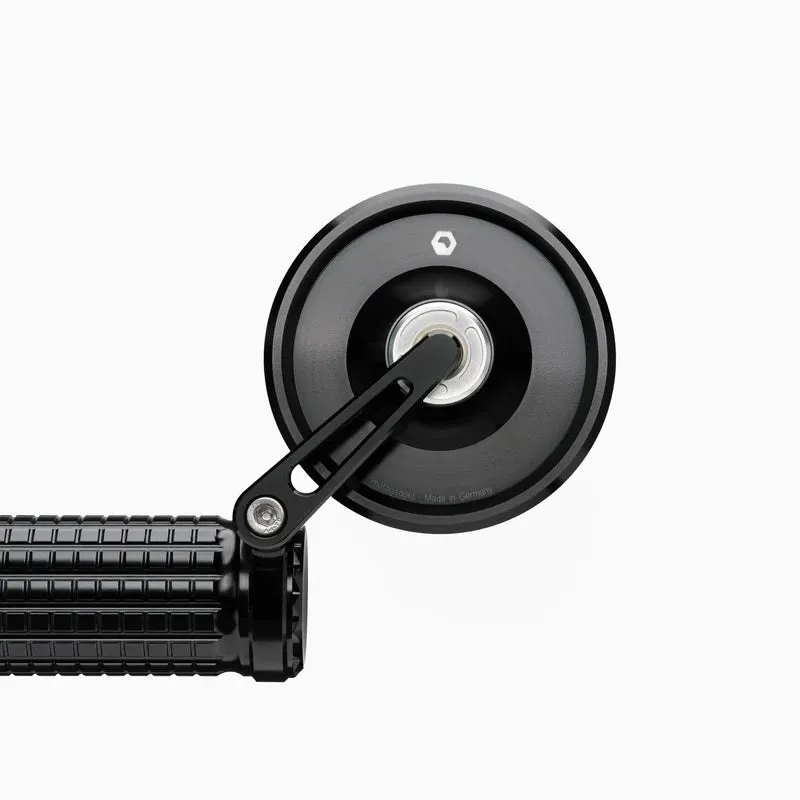

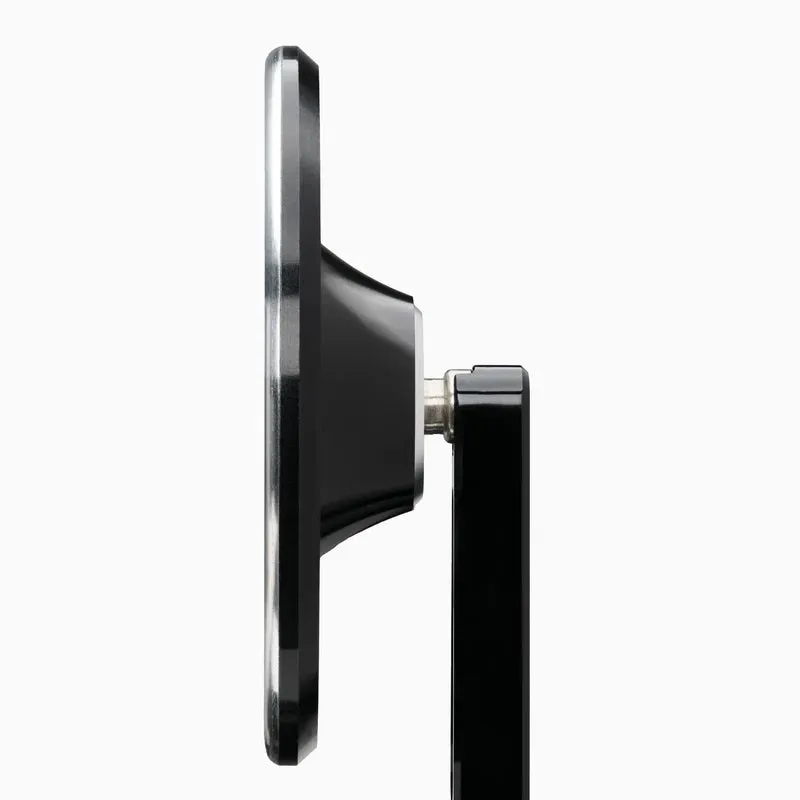

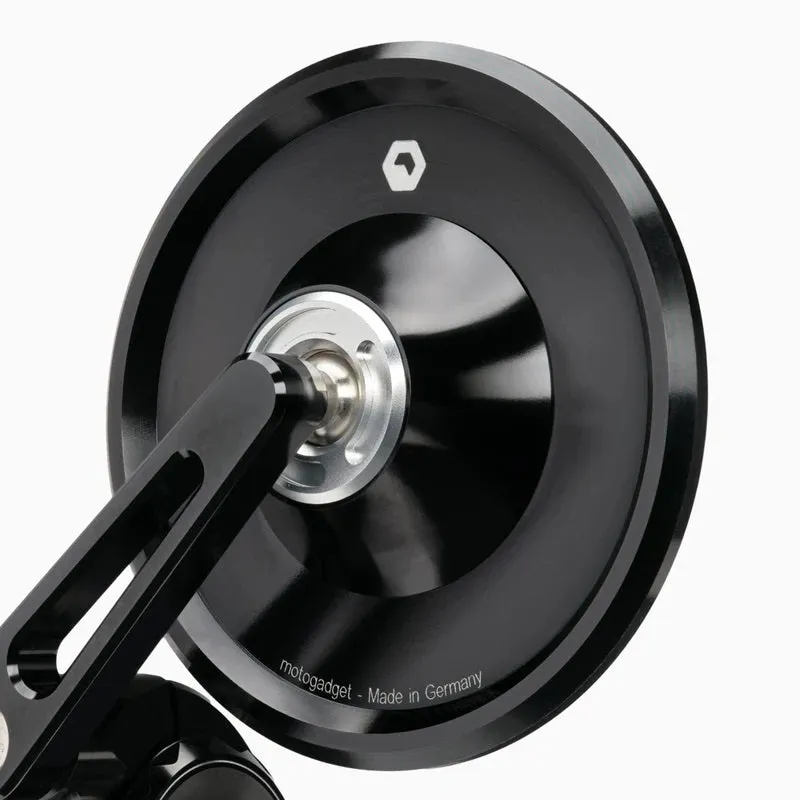

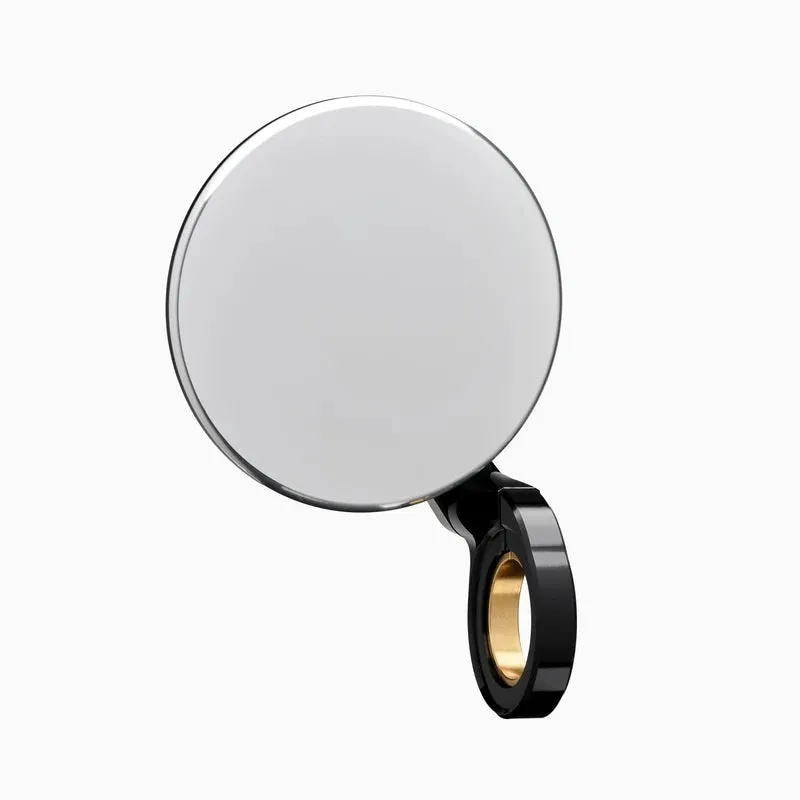

mo.view glassless mirror series stands out as a global innovation. What sets these mirrors apart is the patented mirror surface, which is meticulously crafted directly from the metal of the mirror body. In essence, the aluminum itself serves as the mirror surface, resulting in an exceptionally thin and lightweight mirror body with a frameless, sleek design. The convex mirror surface is precision-engineered using diamond tools on ultra-precision machines at our Berlin facility. To enhance durability, the mirror undergoes a complex plasma coating in a vacuum, making it highly resistant to oxidation, corrosion, and abrasion.

The mirror body, mirror arm, and handlebar clamp are all precision-milled from solid billet aluminum using CNC machines and finished to the highest standards with anodization. Each screw used is made of stainless steel. The precise ball joint mechanism allows for comfortable and stable mirror adjustment, ensuring that issues like glass breakage or glass falling out are a thing of the past.

As a special feature, the mirrors of the flip series have a pivoting mirror arm with defined set angles at 45° intervals. This allows the mirror to be tilted upwards if required without changing the setting of the mirror. Extremely practical for narrow passages, space problems in the garage or for transport. The set points are very stable and cannot be accidentally adjusted. The mirror does not vibrate when properly installed, even at high speeds.

The mirror can be mounted both above or below the handlebar and is suitable for the right and left side. Mounting is directly on the end of the handlebar (22.2 mm and 1 inch). If the grips and fittings can not be moved, using a mo.view bar adapter allows for a proper installation.

The size of the mirror surface complies with the StVZO.

Technical data

• Mirror body diameter: 75 mm (2.95")
• Thickness of the mirror body without ball head: 4 mm (0.157")
• Length of the mirror arm: 61 mm (2.4")
• Clamp diameter: can be used for 22.2 mm (7/8") and 1" handlebars
• Clamp width: 12 mm (0.472")
• Weight: 110 g / 0.243 lbs / 3.88 oz

Scope of delivery

• 1x mo.view spy flip mirror (without ECE marking) with arm
• 1x clamp
• QR code for mounting and operating instructions
