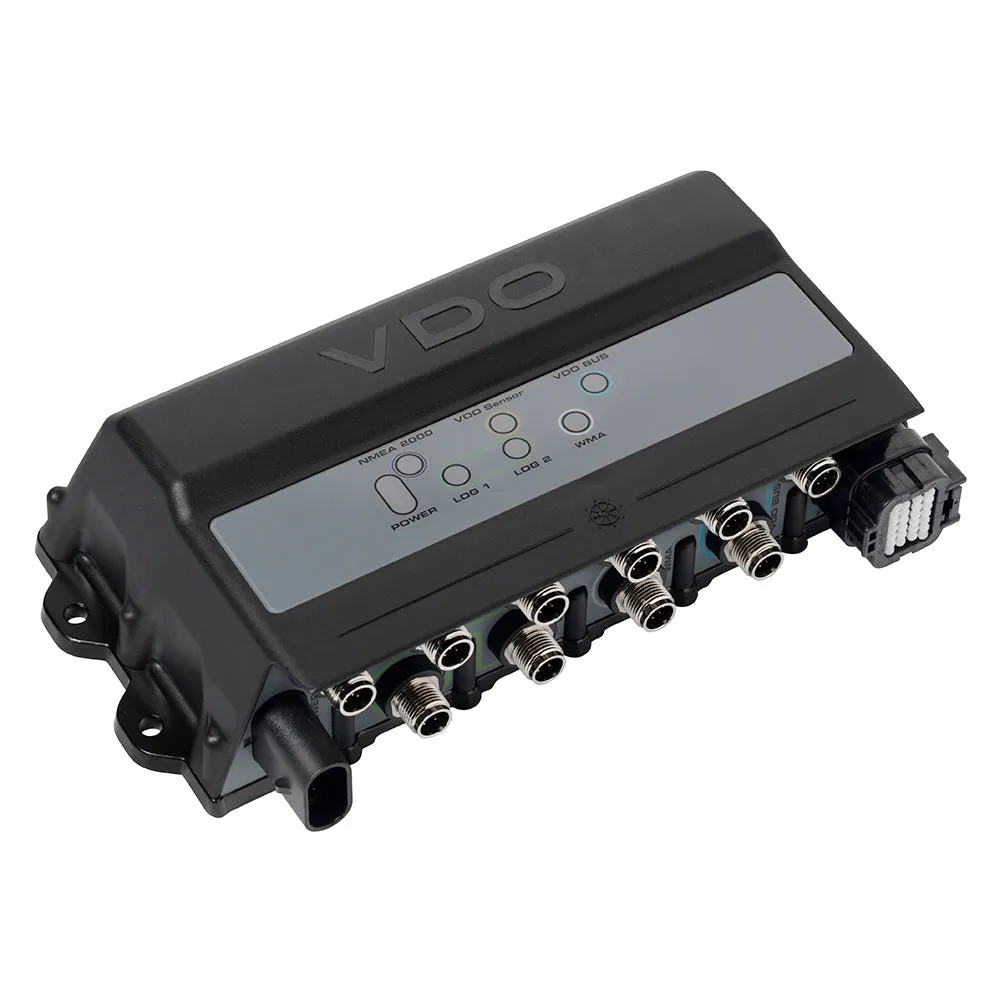

NavBox Electronic Control Unit

The AcquaLink® NavBox is the core of the AcquaLink® VDO Marine system. It acts as a CPU and signal interface. The NavBox provides a wide range of digital and analog input possibilities. It supports up to four electronic engines (J1939 or NMEA 2000®) or one analog engine. It also features two VDO Marine Sumlog® paddle wheel sensor and one analog VDO Marine Windsensor connections, so legacy VDO Marine products can be used and brought to the digital age.

NavSensor reads following analog data:

• Engine Oil Pressure
• Engine Oil Temperature
• Engine Coolant Temperature
• Transmission Oil Pressure
• Fresh Water, Waste Water and Fuel Level
• Voltage
• Rudder Angle
• Engine Frequency
• Battery Current
• Pyrometer

It also features a NMEA 0183 input and output port as well as a buzzer output. All received data are converted and sent to the NMEA 2000® network and to the VDO Marine Bus. This gateway function allows displaying engine, liquid level, pressure, temperature and other vital information on any compatible display on the NMEA 2000® network or on designed VDO Marine AcquaLink® gauges or TFT Displays.

The configuration of the NavBox can be done by using an AcquaLink® TFT and NavControl or by using the intuitive VDO Marine diagnostic tool.

• Reverse polarity protection
• NMEA 2000® certified
• LED signal status indication
• Aluminum base plate
• Front & rear side protection rating IPX4
• 3x VDO Marine bus lines
• 1x J1939 CAN bus
• 1x NMEA 2000® bus
• 1x VDO Marine Analog Wind Sensor Input
• 2x VDO Marine Sumlog® Inputs
• AMP Super Seal power input
• 26 pin AUX input (analog signals, NMEA 0183)
• Operating temperature range -20°C/ 70°C
